Reliable AC Power for Recreational Vehicles

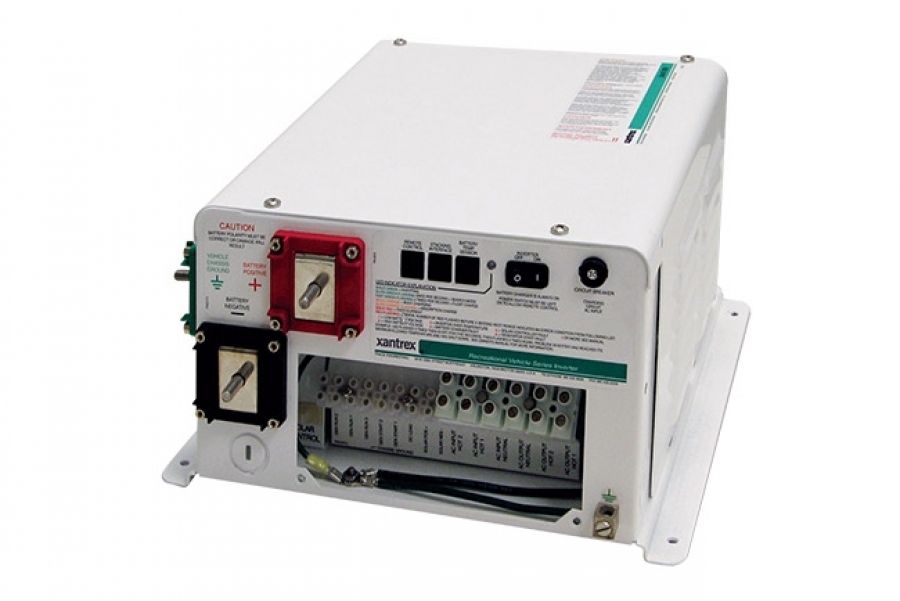

Feature-rich and easy to install, the RV Series GS produces up to 3000 watts of continuous, modified sine wave power from a 12-volt battery bank. It is ideal for powering basic appliances and power tools. Designed for use with electricity supplied from your generator or RV campground hookup, these inverter/chargers provide automatic, multistage charging, manual battery equalization and temperature sensitive charging for optimal care of your batteries. A built-in transfer switch automatically transfers between inverter power and incoming AC power.
All RV Series products have a built-in shunt, which when paired with RC/GS Remote Panel enables advanced battery monitoring and inverter/charger control. They also have the necessary built-in hardware to be connected to your generator, enabling automatic generator starting when paired with RC/GS remote panel.
Product Features
2000/2500/3000 watt inverter
100/120/140A three-stage battery charger recharges batteries quickly and accurately
Can be installed to transfer 30 amp or 50 amp service
Power sharing prevents source AC input circuit breaker from tripping
Built-in shunt enables battery fuel gauge display
Built-in automatic starting system for generators with thermostat control
24 month warranty
Options
Models with dual branch-rated circuit breakers (2x20A, or 1x20A and 1x15A)
Accessories
Compatible with RC/GS remotes
Battery Temperature Sensor available in 15, 25 and 35 foot lengths
| Electrical Specifications – Inverter | |||
| Models | RV2012GS | RV2512GS | RV3012GS |
| Output power AC (max. continuous) | 2000 watts | 2500 watts | 3000 watts |
|
Surge rating (AC amps) |
44 A |
48 A |
52 A |
|
Output frequency |
60 Hz +/- 0.4% |
60 Hz +/- 0.4% |
60 Hz +/- 0.4% |
|
Output waveform |
Modified sine wave |
Modified sine wave |
Modified sine wave |
|
Peak efficiency |
94% |
94% |
94% |
|
AC output connections |
Dual |
Dual |
Dual |
|
AC input connections |
Dual |
Dual |
Dual |
|
AC transfer switch |
50 A |
50 A |
50 A |
| Electrical Specifications – Charger | |||
|
AC input voltage |
120 VAC |
120 VAC |
120 VAC |
|
DC input voltage range |
10.2 - 15.5 VDC |
10.2 - 15.5 VDC |
10.2 - 15.5 VDC |
|
Battery voltage (nominal) |
12 VDC |
12 VDC |
12 VDC |
|
Max charge output DC amps |
100 A |
120 A |
140 A |
|
Charge Control |
3-Stage |
3-Stage |
3-Stage |
|
Battery type settings |
Wet/Gel/AGM |
Wet/Gel/AGM |
Wet/Gel/AGM |
|
Equalization |
Yes |
Yes |
Yes |
|
Temperature sensitive charging |
Yes |
Yes |
Yes |
| General Specifications | |||
|
Operating temperature range |
32°F-104°F (0°C-40°C) |
32°F-104°F (0°C-40°C) |
32°F-104°F (0°C-40°C) |
|
Remote Panel |
RC/GS |
RC/GS |
RC/GS |
|
Optional battery temperature sensor |
15, 25 and 35 foot lengths |
15, 25 and 35 foot lengths |
15, 25 and 35 foot lengths |
|
Recommended Class T DC Fuse |
250 A |
300 A |
400A |
|
Dimensions (H x W x L) |
7.25x13.12x13.9” (180x333x352mm) |
7.25x13.12x13.9” (180x333x352mm) |
7.25x13.12x13.9” (180x333x352mm) |
|
Weight |
45 lb (20.5 kg) |
50 lb (22.7 kg) |
60 lb (27.2 kg) |
|
Warranty |
24 months |
24 months |
24 months |
|
Part numbers |
RV2012GS |
RV2512GS |
RV3012GS |
|
Accessories (all models) |
RC/GS (on/off control and setup, state of charge, LCD, AGS) |
||
| Regulatory Approvals |
| UL and CUL listed to UL 458 |
Note: Specifications subject to change without notice. Other cable lengths and accessories are available on request.
