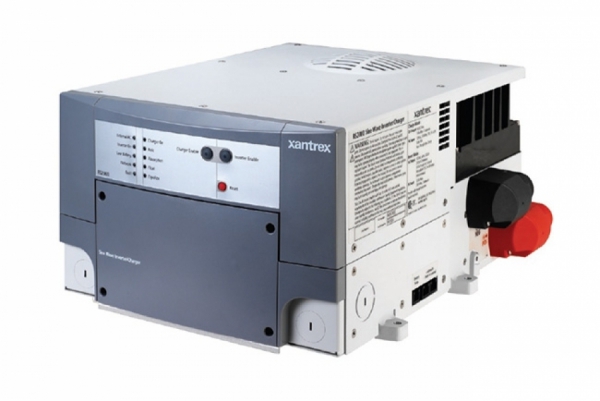

Powerful, easy-to-use sine wave inverter/chargers featuring an upgradeable design and built-in networking.
RS Inverter/Chargers are simply the most advanced and easy to use on the market. Premium sine wave output and a high surge capability will power appliances and electronic devices, including microwaves, entertainment systems, coffee makers, power tools, and lights.
A power factor corrected three-stage charger provides long battery life by recharging batteries more quickly, while using less AC power. The stress-tested, UL458 design delivers reliable power in demanding conditions. An aluminum chassis and high-temperature operation guarantee long-term
trouble-free performance. They also meet strict electromagnetic interference standards designed to minimize interference with radios and other onboard electronics.
RS Inverter/Chargers are Xanbus Enabled, so it’s easy to connect network-enabled accessories as well as share power status and diagnostic information with other devices. Xanbus makes power management less complex, while intelligently making the best use of available power resources. The inverter/chargers and accessories have built-in flash memory so their software can be upgraded to take advantage of new features and system enhancements.
Product Features
2000 watt inverter/5000 watt surge rating and 3000 watt inverter/7500 watt surge rating
Sine wave output to power sensitive appliances and electronics
120/150A power factor corrected multi-stage charger for fast, efficient charging
Full power inverter and charger output to 122ºF (50ºC)
Split phase or dual in-phase inputs offers flexible use of available AC power
Advanced diagnostics and field upgradeable software
Meets UL458 standards and FCC Class B regulations
Xanbus Enabled
Protection Features
Battery over voltage and under voltage protection
Over temperature protection
Automatic overload protection
Short circuit protection
Electrical Specifications – Inverter | ||
Model | RS2000 | RS3000 |
Output power (continuous) | 2000 W | 3000 W |
Surge rating (5 second) |
5000 W (42 A) |
7500 W (60 A) |
Output voltage |
120 VAC |
120 VAC |
Output frequency |
60 Hz + / -0.05% (crystal controlled) |
60 Hz + / -0.05% (crystal controlled) |
Output waveform |
Sine wave <3% THD |
Sine wave <3% THD |
Peak efficiency |
>92% |
>90% |
Efficiency (full load) |
>87% |
>85% |
No load power draw (load sense) |
<14.4 W |
<20 W |
AC connections |
Single / Dual* |
Split phase in / dual out, Dual in / dual out |
AC transfer capacity |
30 A (single in) |
2 legs at 50 A (split phase in), 2 legs at 30 A (dual in) |
Transfer time |
20 ms (typical) |
20 ms (typical) |
*See options under ‘Part Numbers’
Electrical Specifications – Charger | ||
Output current |
120 ADC |
180 ADC |
Battery voltage (nominal) |
12 VDC |
12 VDC |
Battery voltage range |
10.0 – 15.5 VDC |
10.0 – 15.5 VDC |
Charge control |
3 stage with manual equalize |
3 stage with manual equalize |
Charge temperature compensation |
Remote battery sensor (included) |
Remote battery sensor (included) |
Efficiency |
85% typical |
85% typical |
AC input power factor |
0.95 |
0.95 |
Input current (maximum charge rate 150 A) |
17 A RMS (120 A) |
22 A RMS (150 A) |
AC input voltage |
120 VAC nominal |
120 VAC nominal |
AC input voltage range |
90 – 135 VAC |
90 – 135 VAC |
Compatible battery types |
Wet / Gel / AGM |
Wet / Gel / AGM |
General | ||
Operating temperature range |
-4ºF – 122ºF (-20ºC – 50ºC) |
-4ºF – 122ºF (-20ºC – 50ºC) |
Storage temperature range |
-40ºF – 122ºF (-40ºC – 50ºC) |
-40ºF – 122ºF (-40ºC – 50ºC) |
Dimensions (H x W x D) |
8.17 x 13.25 x 16” (208 x 336 x 406 mm) |
8.17 x 13.25 x 16” (208 x 336 x 406 mm) |
Weight |
68.0 lbs. (30.9 kg) |
75.0 lbs. (34.01kg) |
Warranty |
3 years |
3 years |
Part Numbers |
Single in / Single out |
809-2000 |
Accessories |
System Control Panel |
809-0910 |
Regulatory Approvals |
CSA/NRTL certified to CSA 107.1, UL 458 FCC Class B/Industry Canada Class B |
Note: Specifications subject to change without notice
