PURE POWER. TRUE VALUE.

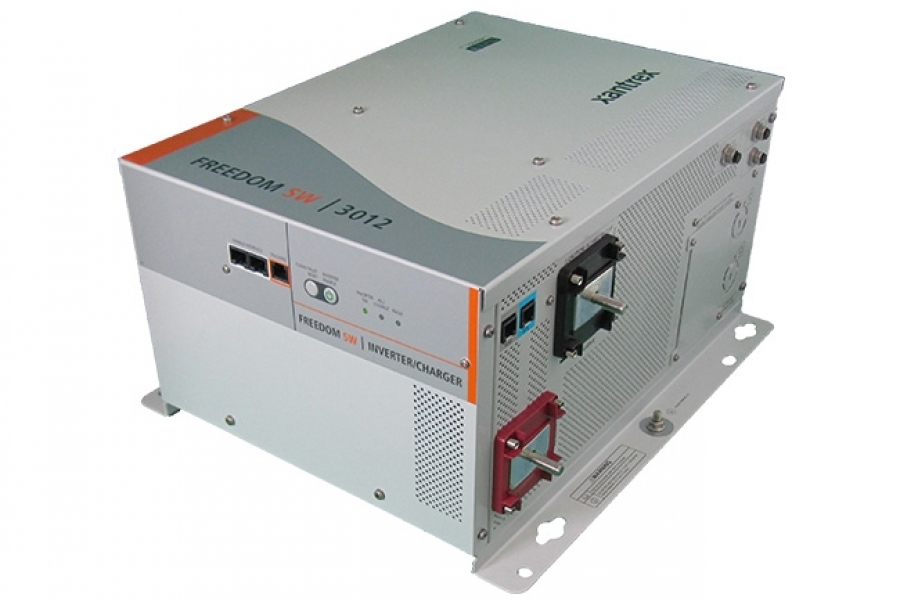

The Freedom SW 3000 inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. It features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of
demanding loads including inductive motor loads.
The Freedom SW 3000 inverter/charger provides 3000 watts of utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.
Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles,
marine vessels, construction and military equipment.
Product Features
Pure sine wave output to operate sensitive electronics
Advanced configuration options for customized applications
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Power factor corrected multi-stage charger for fast, efficient charging
Temperature compensated charging for all climate conditions
Ignition lockout prevents unnecessary battery drain when the alternator is not providing power*
Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
Conformal coated circuit boards for humid environments
Dual input / Dual output AC interface
Compatible with the Xantrex Automatic Generator Start** (Part# 809-0915)
On/off remote control panel with 25’ cable included (Part# 808-9002)
Field upgradeable firmware
Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements
*When used with the remote panel
**Sold separately
Protection Features
Battery over-voltage and under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection
Integrated, resettable AC breakers
Also Available: Freedom SW 2000 Sine Wave Inverter/Charger (Part# 815-2000)
Electrical Specifications - Inverter | |
Output power (continuous at 25°C) |
3000 W |
Surge rating (10 seconds) |
6000 W |
Output frequency |
60 Hz +/- 0.2 Hz |
Output voltage |
120 Vac |
Output wave form |
Pure sine wave |
Optimal efficiency |
90% |
No-load power draw (inverting) |
3 Adc |
Input DC voltage range |
10 - 16 Vdc |
AC connections |
Split phase in / dual out, Dual in / dual out |
Electrical Specifications - Charger | |||
Output current |
150 A |
||
Output voltage |
12 Vdc |
||
Output voltage range |
5 - 16 Vdc | ||
Charge control |
3 stage with manual equalize | ||
Charge temperature compensation |
Remote battery sensor (included) | ||
Optmial Efficiency |
> 85% | ||
AC input power factor |
0.95 | ||
Input current (for 150 A charging) |
22 A rms nominal | ||
Input AC voltage |
120 Vac | ||
Input AC voltage range |
95 - 140 Vac | ||
Dead battery charge | > 5 Vdc |
General Specifications | |
Compatible battery types | Flooded / gel / AGM |
Transfer relay rating | 2 legs at 30 A each |
Transfer time (AC to inverter and inverter to AC) | < 20 ms |
Optimal operating temperature range | - 4°F to 140°F (- 20°C to 60°C) |
Storage ambient temperature range | - 40°F to 185°F (- 40°C to 85°C) |
Unit Dimensions (H x W x L) | 7.75 x 13.5 x 15.25” (19.7 x 34.3 x 38.7 cm) |
Unit weight | 33.5 kg (73.7 lbs) |
Warranty | 2 yea |
Master carton quantity | 1 |
Master carton dimensions (H x W x L) | 11.8 x 17.1 x 20.5” (30 x 43.5 x 52.2 cm) |
Master carton weight | 35 kg (77 lbs) |
Part Number | 815-3000 |
Accessories | |
Freedom SW on/off remote panel | Part# 808-2009 - INCLUDED |
Battery temperature sensor | Part# 808-0946 - INCLUDED |
Automatic Generator Start (AGS) | Part# 809-0915 - SOLD SEPARATELY |
System control panel (SCP) | Part# 809-0910 - SOLD SEPARATELY |
25’ network cable for system control panel | Part# 809-0940 - SOLD SEPARATELY |
75’ network cable for system control panel | Part# 809-0942 - SOLD SEPARATELY |
Drip shield | Part# 808-9004 - SOLD SEPARATELY |
Regulatory & Environmental Compliance | |
ETL certified to CSA 107.1, UL458 with marine supplement**, FCC Part 15, Class B |
**When used with the Drip Shield. Drip Shield sold separately.
Note: Specifications subject to change without notice
