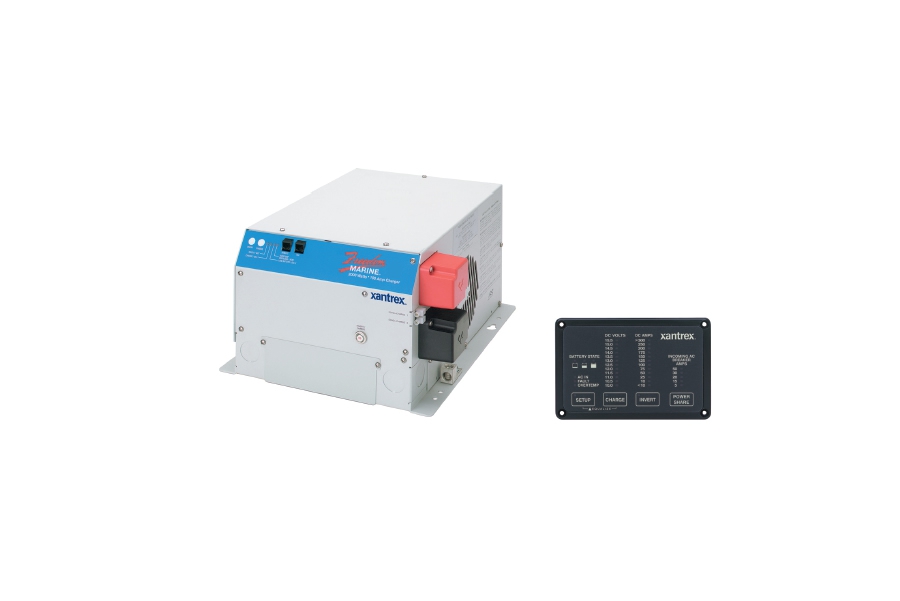

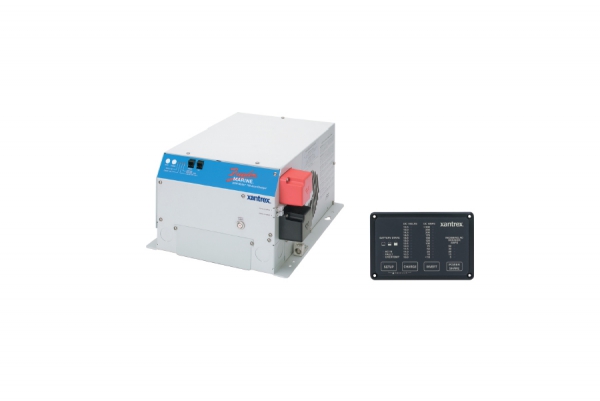

AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom Marine inverter/chargers run virtually anything on your boat, from office equipment to household appliances and electronics. Temperature controlled multistage charging ensures that your batteries are recharged safely and efficiently. Its integrated transfer switch allows for automatic change-over between shorepower and inverter.
For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom Marine inverter/chargers can be paired with optional Link instrumentation.
Product Features
MSW AC power inverter with high surge capability
Automatic 3-stage battery charger
Temperature compensation with equalization stage provides optimal charging of deep cycle
batteries
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Multiple battery bank charging from the built in 15 A echo~charge
Power sharing prevents source AC input circuit breaker from tripping
Customized settings can be programmed with the Freedom Basic Remote or Link panels
Aluminum chassis ideal for marine environment
Includes battery temperature sensor
30 month warranty
Protection Features
Over voltage and under voltage protection
Over-temperature protection
Overload protection
Short circuit protection
Electrical Specifications – Inverter | |||||
Models | 10 | 15 | 20 | 25 | 30 |
Output power (continuous) | 1000 W | 1500 W | 2000 W | 2500 W | 3000 W |
Surge power (AC amps) |
25 A |
37.5 A |
50 A |
62.5 A |
75 A |
Output frequency regulation |
50 or 60 Hz* |
50 or 60 Hz* |
50 or 60 Hz* |
50 or 60 Hz* |
50 or 60 Hz* |
Inverter voltage regulation |
120 V +/-5% true RMS |
120 V +/-5% true RMS |
120 V +/-5% true RMS |
120 V +/-5% true RMS |
120 V +/-5% true RMS |
Output wave form |
Modified sine wave |
Modified sine wave |
Modified sine wave |
Modified sine wave |
Modified sine wave |
Efficiency (full load) |
85% |
86% |
85% |
87% |
86% |
Peak efficiency |
93% |
93% |
93% |
93% |
93% |
No load current draw (idle mode) |
0.12 A |
0.12 A |
0.12 A |
0.12 A |
0.12 A |
AC transfer switch |
30 A |
30 A |
30 A |
30 A |
30 A |
* Quartz regulated
Electrical Specifications – Charger | |||||
Charge rate |
50 A DC |
75 A DC |
100 A DC |
130 A DC |
140 A DC |
AC input voltage range |
90 − 130 VAC |
90 – 130 VAC |
90 − 130 VAC |
90 – 130 VAC |
90 – 130 VAC |
Battery voltage (nominal) |
12 VDC |
12 VDC |
12 VDC |
12 VDC |
12 VDC |
Battery voltage range |
10.0 − 15.5 VDC |
10.0 − 15.5 VDC |
10.0 − 15.5 VDC |
10.0 − 15.5 VDC |
10.0 − 15.5 VDC |
Low battery cut-out |
10.0 VDC |
10.0 VDC |
10.0 VDC |
10.0 VDC |
10.0 VDC |
AC input (max. charge mode) |
12 A AC |
16 A AC |
21 A AC |
26 A AC |
28 A AC |
Default bulk charge voltage setting |
14.4 VDC |
14.4 VDC |
14.4 VDC |
14.4 VDC |
14.4 VDC |
Default float charge voltage setting |
13.5 VDC |
13.5 VDC |
13.5 VDC |
13.5 VDC |
13.5 VDC |
Equalize charge voltage (wet cell only) |
16.3 VDC |
16.3 VDC |
16.3 VDC |
16.3 VDC |
16.3 VDC |
Battery charge outputs |
2 |
2 |
2 |
3 |
3 |
Charge control |
3-stage |
3-stage |
3-stage |
3-stage |
3-stage |
Battery type settings |
Wet / Gel 1 / Gel 2 / AGM |
Wet / Gel 1 / Gel 2 / AGM |
Wet / Gel 1 / Gel 2 / AGM |
Wet / Gel 1 / Gel 2 / AGM |
Wet / Gel 1 / Gel 2 / AGM |
Equalization |
Yes |
Yes |
Yes |
Yes |
Yes |
Temperature sensitive charging |
Yes |
Yes |
Yes |
Yes |
Yes |
General Specifications | |||||
Optimal operating temperature range |
32°F − 104°F (0°C − 40°C)*derated below 0°C and above 40°C |
||||
Optional remotes |
Freedom Basic Remote or Link instrumentation |
||||
Dimensions (H x W x L) |
7.9 x 11.5 x 13.2” (201 x 292 x 335 mm) |
||||
Weight |
34 lb (15 kg) |
345 lb (20 kg) |
45 lb (20 kg) |
50 lb (23 kg) |
50 lb (23 kg) |
Warranty |
30 months |
30 months |
30 months |
30 months |
30 months |
Part numbers |
81-1011-12 |
81-1511-12 |
81-2011-12 |
81-2511-12 |
81-3011-12 |
Freedom Basic Remote |
84-2056-01 |
84-2056-01 |
84-2056-01 |
84-2056-01 |
84-2056-01 |
Link 1000 |
84-2019-02 |
84-2019-02 |
84-2019-02 |
84-2019-02 |
84-2019-02 |
Link 2000 |
84-2000-06 |
84-2000-06 | 84-2000-06 | 84-2000-06 | 84-2000-06 |
Note: Specifications subject to change without notice.
