No Messy Wiring. Quick Installation. Minimal Battery Drain

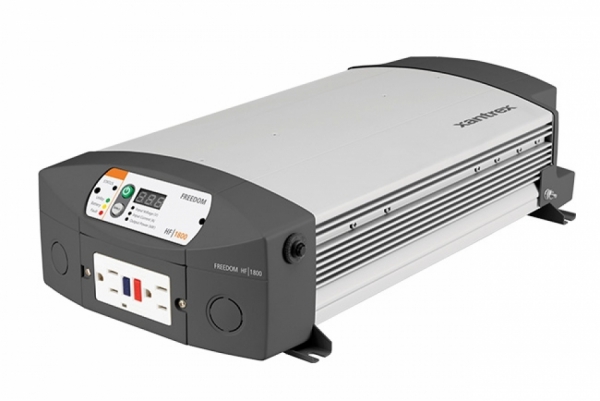

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market. The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The
quick-connect AC terminal on both AC input and output enables incredibly installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition
is turned off.
The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV’s and trucks. The Freedom HF is available in three models: 1000 watts with
a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.
Multistage charging helps ensure that batteries are recharged quickly and efficiently. All models are equipped with a built-in automatic transfer switch and dual GFCI receptacle. Detachable digital remote control panel display provides
precise system information and can be mounted at a convenient location for remote monitoring.
Product Features
Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances
and other electronic equipment
Ignition lockout feature helps to minimize battery drain
Digital, detachable remote panel pre-attached with 25’ extension cable for remote system monitoring
Automatic three-stage battery charger
Designed to be hardwired using quick-connect AC terminals or by connecting AC through GFCI
receptacles (included)
Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power
Protection Features
Battery over-voltage and under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection
Ground-fault protection
ETL certified to UL458 for use in mobile RV, marine and commercial applications
Electrical Specifications - Inverter | |||
Models | HF 1000 | HF 1055 | HF 1800 |
Output power (continuous) | 1000 W | 1000 W | 1800 W |
Surge power |
2000 W |
2000 W |
3600 W |
Output frequency regulation |
60 Hz |
60 Hz |
60 Hz |
Inverter voltage regulation |
115 +/-10 Vrms |
115 +/-10 Vrms |
115 +/-10 Vrms |
Output wave form |
Modified sine wave |
Modified sine wave |
Modified sine wave |
Efficiency (full load) |
> 80% |
> 80% |
> 80% |
Peak efficiency |
> 87% |
> 87% |
> 87% |
No-load input power (producing output voltage) |
< 10 W |
< 10 W |
< 10 W |
Off mode current draw (display off) |
< 1 mA |
< 1 mA |
< 1 mA |
Electrical Specifications - Charger | |||
Charge rate |
20 A |
55A |
40 A |
AC input voltage range |
90 – 130 Vac |
90 – 130 Vac |
90 – 130 Vac |
AC transfer relay |
30 A |
30 A |
30 A |
Battery voltage (nominal) |
12 Vdc |
12 Vdc |
12 Vdc |
Operating voltage range |
10.5 – 15.5 Vdc |
10.5 – 15.5 Vdc |
10.5 – 15.5 Vdc |
Low battery cut-out (low limit / high limit) |
10.5 Vdc / 11.8 Vdc |
10.5 Vdc / 11.8 Vdc |
10.5 Vdc / 11.8 Vdc |
AC input (max. charge) |
5 Aac |
10 Aac |
7.5 Aac |
Default bulk charge voltage setting |
14.2 Vdc |
14.2 Vdc |
14.2 Vdc |
Default float charge voltage setting | 13.5 Vdc | 13.5 Vdc | 13.5 Vdc |
Battery charge outputs | One | One | One |
Charge control | Three-stage | Three-stage | Three-stage |
Battery type settings | Flooded / Gel / AGM / Fixed 13.5 Vdc | Flooded / Gel / AGM / Fixed 13.5 Vdc | Flooded / Gel / AGM / Fixed 13.5 Vdc |
Equalization | No | No | No |
Internal temperature-sensitive charging | Yes | Yes | Yes |
General Specifications | |||
Optimal operating temperature range |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
Optional remotes |
Detachable display |
Detachable display |
Detachable display |
Unit weight |
10 lb (4.5 kg) |
10 lb (4.5 kg) |
12.8 lb (5.8 kg) |
Unit dimensions (H x W x L) |
4.2 x 9.5 x 15.5“ (106 x 241 x 393 mm) |
4.2 x 9.5 x 15.5“ (106 x 241 x 393 mm) |
4.2 x 9.5 x 18.0“ (106 x 241 x 457 mm) |
Warranty |
Two year |
Two year |
Two year |
Part number |
806-1020 |
806-1055 |
806-1840 |
Regulatory & Environmental Compliance |
ETL Certified to CSA Standard C22.2 No. 107.1, UL458 with marine supplement (drip shield, part # 808-9531). |
