AMP-IT-UP! NEW 24-Volt Universal Chargers

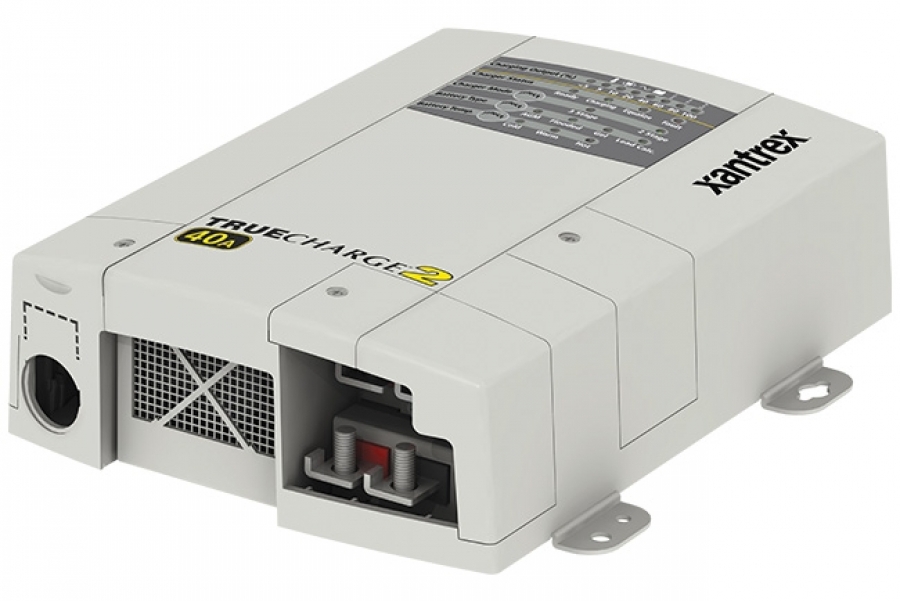

Building on the success of the TRUECharge™2 12-volt battery chargers, Xantrex™ now offers 24-volt battery chargers designed to meet the specific needs of marine and commercial markets. Available in 10A, 20A and 30A versions, each model packs a powerful universal charger (90-240Vac, 47-63 Hz) in an ultra-compact, lightweight package.
TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be
augmented with an optional remote panel.
NEW PARALLEL FEATURE
TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part #808-8040-01).
Performance Features:
Microprocessor-controlled, multistage charging algorithms
Settings for two and three-stage charging
Settings for flooded, gel, AGM or lead-calcium batteries
Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
Power factor corrected, temperature-compensated charging
Battery-equalization feature
Ability to charge batteries drained to extremely low voltage
Optional Battery temperature sensor (Part #808-0232-01)
Optional Remote Panel (Part #808-8040-01)
Protection Features:
Reverse battery polarity protection
Drip-proof design
Over and under-temperature protection
DC over-voltage protection
Battery overcharging protection
Also available in 12-volt models: 10 A, 20 A, 40 A and 60 A.
10 A, 20 A and 30 A 24-volt Multistage Battery Chargers
Electrical Specifications (@ 25°C unless otherwise noted) | |
Models |
TRUECHARGE2 10 / 20 / 30 |
Output current (nominal) |
10 A / 20 A / 30 A |
Output voltage (nominal, depending on battery type settings) |
|
Charge |
28.4 - 31.0 Vdc |
Float |
26.8 - 27.6 Vdc |
Equalize |
32 Vdc |
DC output connections |
Three |
AC input voltage 1 | 90-265 Vac 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal |
Temperature compensation | Three settings |
Charger efficiency | > 80% |
Battery type | Gel, Flooded, AGM and Pb-Ca |
Minimum recommended battery bank size | 40 Ah / 80 Ah / 120 Ah |
General Specifications | |
Models |
TRUECHARGE2 10 / 20 / 30 |
Operating temperature 2 |
0 to 60°C |
Storage temperature |
-40 to 80°C |
Battery connection |
Three positive terminals |
Dimensions (H x W x L) |
10 A & 20 A - 2.8 x 6.7 x 9.8” (70 x 170 x 250mm |
Weight |
10 A & 20 A - 4.8 lb (2.2 kg) |
Warranty |
Two year |
Part Numbers |
804-2410 / 804-2420 / 804-2430 |
Accessories | |
Remote panel |
808-8040-01 |
Battery temperature sensor |
808-8040-01 |
Regulatory Compliance |
CSA E60335-2-29, UL1564, and UL1236 including the Marine Supplement, drip test, and Ignition Protection ratings. CE Marked for the Low Voltage Directive |
1 90 - 104 Vac ± 4 Vac output de-rated to 80% of full load current
² For all three models, the output current may derate above 50°C.
Highly Accelerated Life Tested (HALT) to -20°C.
Note: Specifications subject to change without notice.
Three-Stage Charging
Multistage charging helps ensure batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered
to the batteries in three automatic stages:
Bulk: Replaces 70-80% of the battery’s state-of-charge at the fastest possible rate.
Absorption: Replenishes the remaining 20-30% of charge, bringing the battery to a full charge at a slow, safe rate.
Float: Voltage is reduced and held constant in order to prevent damage and maintain batteries at a full charge.
Power Factor Corrected (PFC)
Less shorepower is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing.
Copyright © 2011 Xantrex Technology Inc. All rights reserved. Xantrex, TRUECharge and Smart choice for power are trademarks of Schneider Electric Services International sprl, registered in the United States and other countries.
