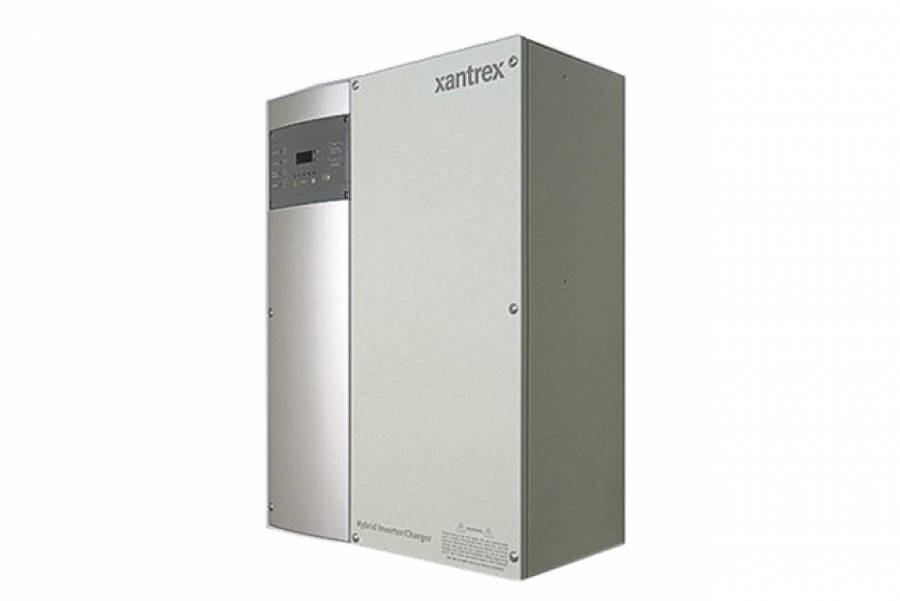

Xantrex™ brings the next generation of inverter/charger to market, with the XW Hybrid Inverter/Charger, the heart of the XW System. The XW Hybrid Inverter/Charger (XW) is a true sine wave, 120/240-volt AC, split-phase, inverter/charger that incorporates a DC to AC inverter, a battery charger, and an AC auto-transfer switch. It is the foundation for battery- based residential and commercial applications up to 18 kilowatts (kW). Capable of being grid-interactive or grid-independent, the XW can operate with generators and renewable energy sources to provide full-time or backup power.
Designed with consultation and input from industry experts, dealers, and installers, the XW sets a new standard for battery-based inverter/chargers. Integrating the best features available in the market, innovative new features by Xantrex and balance-of-systems components, the XW Hybrid Inverter/Charger’s design makes installation quicker and easier. The XW offers high efficiency and unprecedented surge capacity to maximize the owner’s return on investment. No other inverter/charger looks or performs like the XW.
Product Features
True sine wave output
120/240 volt AC spilt-phase operation
Dual AC inputs
Integrated design to minimize external balance-of-system components
XanBus™-enabled network communication
Certified to UL1741 and CSA for utility-interactive applications
Unprecedented surge capacity
Efficient, power factor corrected, high-current, multistage battery charging
Optional Accessories
Item | Part Number |
- XW Power Distribution Panel | 865-1015 |
- XW Connection Kit for Second Inverter |
865-1020 |
- XW Conduit Box |
865-1025 |
- XW Solar Charge Controller |
865-1030 |
- XW System Control Panel |
865-1050 |
- XW Automatic Generator Start |
865-1060 |
For more information on the XW System please visit www.xantrex.com/xw
Electrical Specifications | |||
Model |
XW6048-120/240-60 |
XW4548-120/240-60 |
XW4024-120/240-60 |
Continuous output power |
6,000 W |
4500 W |
4000 W |
Surge rating (10 seconds |
12,000 W |
9000 W |
8000 W |
Surge current |
L-N: 105 Arms (7 sec) |
L-L: 52.5 Arms (7 sec) |
L-N: 75 Arms (20 sec) |
Waveform |
True sine wave |
True sine wave |
True sine wave |
Low-load efficiency |
95% |
95% |
95% |
Idle consumption - search mode |
< 8 W |
< 8 W |
< 8 W |
AC connections |
AC1 (Grid), AC2 (Generator |
AC1 (Grid), AC2 (Generator |
AC1 (Grid), AC2 (Generator) |
AC voltage |
120/240 Vac split-phase |
120/240 Vac split-phase |
120/240 Vac split-phase |
AC input breaker |
60 A two-pole |
60 A two-pole |
60 A two-pole |
Utility interactive |
Yes |
Yes |
Yes |
CEC weighted efficiency |
92.5% |
93% |
91% |
CEC power rating |
5752 W |
4500 W |
4000 W |
AC input voltage range (bypass/charge mode) |
L-N: 80 - 150 Vac (120 V nominal); L-L: 160 - 270 Vac (240 V nominal) |
||
AC input frequency range (bypass/charge mode) |
55 - 65 Hz (default); 44 - 70 Hz (allowable) |
||
AC1 voltage range – Sell mode |
L-N: 108 - 130 +/- 1.5 Vac; L-L: 214 - 260 +/- 3.0 Vac |
||
AC1 frequency range – Sell mode |
59.4 - 60.4 +/- 0.05 Hz |
||
AC output voltage |
L-N: 120 Vac +/- 3%; L-L: 240 Vac +/- 3% |
||
AC output frequency |
60.0 +/-0.1 Hz |
||
DC current at rated power |
130 A | 96 A | 178 A |
Total harmonic distortion |
< 5% | ||
Automatic transfer relay |
60 A | ||
Typical transfer time |
8 ms | ||
DC input voltage (nominal) |
50.4 Vdc | 50.4 Vdc | 25.2 Vdc |
DC input voltage range |
44 - 64 Vdc | 44 - 64 Vdc | 22 - 32 Vdc |
Maximum continuous charge rate |
100 A | 85 A | 150 A |
Efficiency at maximum charge rate |
89.4% | 90.2% | 85.8% |
Power factor corrected charging |
0.98 | 0.98 | 0.98 |
Emissions |
FCC Class B | FCC Class B | FCC Class B |
Multiple-unit configurations |
Up to three parallel units in 120/240-volt split-phase configuration | ||
Auxiliary relay output |
0-12 Vdc, maximum 250 mA DC | ||
Non-volatile memory |
Yes | Yes | Yes |
System network |
Xanbus™ (publish-subscribe network, no need for hubs or special cards) |
Mechanical Specifications | |||
Mounting |
Wall mount, backplate included |
||
Inverter dimensions (H x W x D) |
23 x 16 x 9” (580 x 410 x 230 mm) |
||
Inverter weight |
125 lb (57 kg) |
115 lb (52 kg) |
115 lb (52 kg) |
Shipping dimensions |
28 x 22 ¼ x 10 ½” (711 x 565 x 267 mm) | ||
Shipping weight |
132 lb (60 kg) |
122 lb (55 kg) |
122 lb (55 kg) |
Display panel |
Status LEDs indicate AC In status, faults/warnings, equalize mode, battery level. Three-character display indicates output power or charge current, fault/warning codes. On/Off and equalize buttons |
||
Battery temperature sensor |
Included |
Included |
Included |
Standard warranty |
Five years (10 years optional) |
Five years (10 years optional) |
Five years (10 years optional) |
Environmental Specifications | |
Enclosure type | NEMA Type 1 – Indoor (sensitive electronic components sealed inside enclosure) |
Operational temperature range | -13 to 158 °F (-25 to 70 °C) |
Accessories | |
Remote display | Optional XW System Control Panel monitors and configures all devices connected to Xanbus™ Network |
Generator support | Optional XW Automatic Generator Start module connects to Xanbus™ Network. Automatically activates generator to recharge depleted battery bank or assist inverter with heavy loads |
Power distribution & panel conduit boxes | Optional balance-of-systems components for NEC compliant installations, includes pre-wired AC and DC circuit breakers, bus bars and multiple knockouts for conduit and additional breakers |
Regulatory Approvals | |
UL 1741 1st Edition: 2005 Version CSA 107.1-01 |
Specifications subject to change without notice
